First air, cleanest air
Horizontal Laminar Air Flow
A cross-flow bench gives the work the cleanest air first, then carries it toward you, which decides both when it's the right unit and how to lay the bench out.
- ISO Class 5 work zone
- HEPA H13 / H14
- 0.45 m/s nominal
- EU-GMP Grade A equivalent
- Manufactured in-house

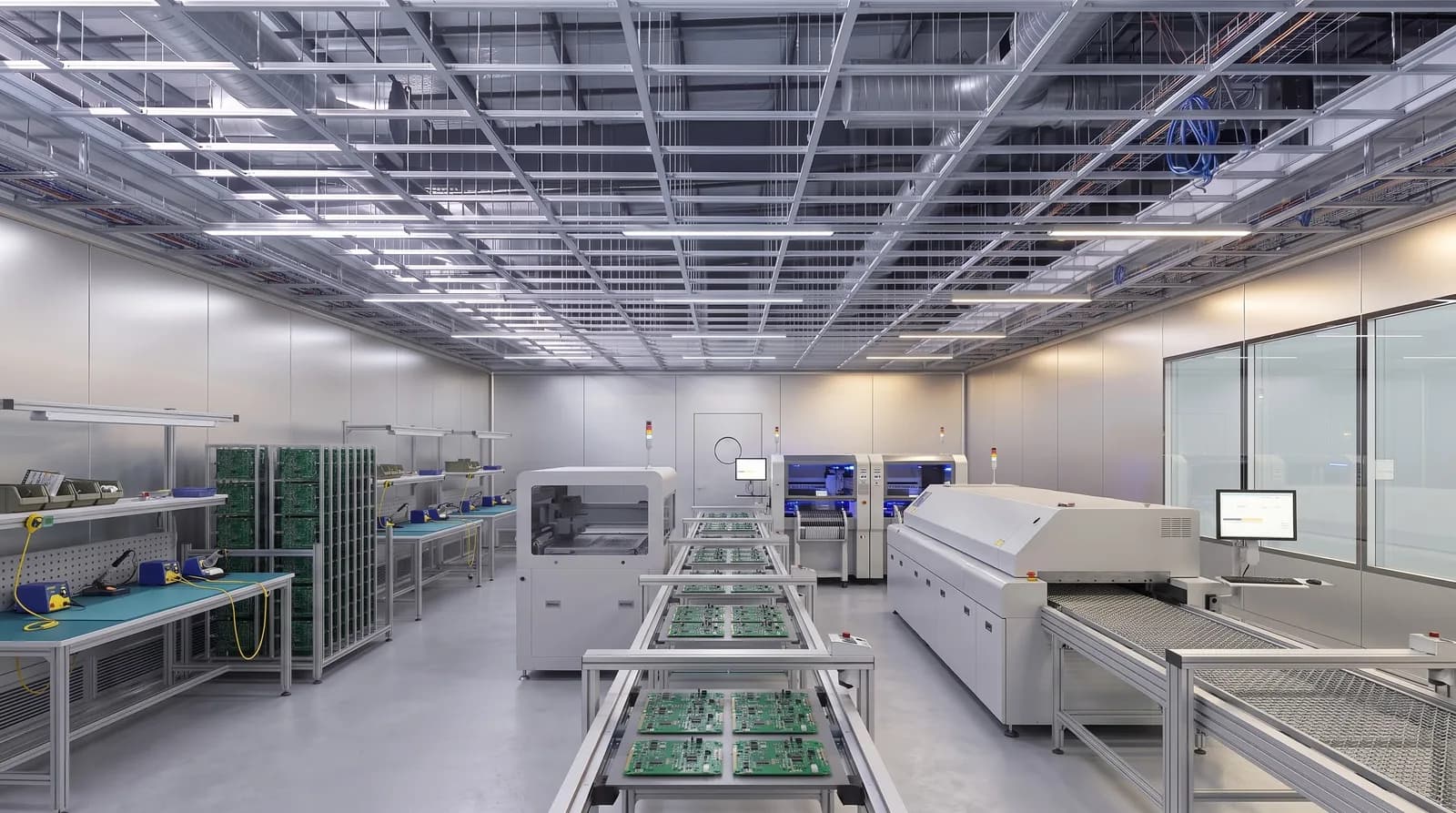

We've built and validated 2,000+ controlled environments across every industry that needs controlled air since 2004, and we manufacture these benches ourselves, so the engineers who size your unit are the same team who'll build it.
- Controlled environments
- 2,000+
- Sector that needs controlled air
- Any
- Work-zone class
- ISO 5
- Nominal set-point
- 0.45 m/s
What a horizontal laminar air flow unit is
A horizontal laminar air flow unit, or cross-flow bench, has its HEPA filter in the back wall and pushes filtered air horizontally across the work surface toward the operator in a smooth, unidirectional sheet.
Picture a steady, filtered breeze crossing your bench from a wall behind the work: that's the whole idea. The air reaches the work straight off the filter as its cleanest, then sweeps shed particles forward and off the bench, holding the work zone at ISO Class 5.
Because the cleanest air arrives at the back of the bench and the most-used air leaves at the front, a horizontal unit rewards a deliberate bench layout: the part most buyers miss, and where getting it right pays off most.
What separates a HEPA filter from a laminar air flow unit, and the anatomy every LAF shares, are set out once on the laminar air flow overview . This page picks up where that leaves off, at the horizontal configuration.
At a glance
- Configuration
- Cross-flow. HEPA filter mounted in the back wall
- Airflow direction
- Horizontal, back to front, toward the operator
- Filter grade
- HEPA H13 or H14, classified to EN 1822 at MPPS
- Nominal velocity
- 0.45 m/s, about 90 ft/min, as a design set-point
- Work surface
- SS 304 as standard, SS 316 for aseptic or corrosive duty
- What it protects
- The product. Never the operator, and never the room
- Wrong for
- Powders, sensitisers, volatile solvents, biological hazards
How the back-to-front airflow works
Picture a clean wind tunnel laid on its side, with your work in the middle of it.
Within that stream the zone holds ISO Class 5 of ISO 14644-1, equivalent to EU-GMP Annex 1 Grade A, confirmed by particle count rather than assumed. Note that the unit recirculates room air through a filter. It is not a containment device, which is what the rule-it-out section below is about.
- 01
Intake at the back
Room air enters a pre-filter, then a blower or FFU raises its pressure.
- 02
HEPA at the back wall
The air passes through a HEPA H13 or H14 filter, 99.95 to 99.995 percent efficient at the most-penetrating particle size, covering the whole back face.
- 03
Horizontal sheet
The cleaned air leaves the full vertical filter face as a uniform sheet travelling straight across the bench at 0.45 m/s, about 90 ft/min, as a nominal design set-point, fast enough to stay laminar all the way to the front.
- 04
Sweep and exit
Anything shed by gloves, tools or process is carried forward and out at the open front, not allowed to settle back onto the work.
- HEPA filtered supply air
- Return to the room, unfiltered
- Bench hardware
FIG. 01The air circuit of a cross-flow bench. Room air is drawn through a pre-filter, pressurised by the blower or FFU, cleaned by the HEPA pack in the back wall, and delivered across the work zone at a nominal 0.45 m/s. It leaves at the open front, into the room it came from.
When a horizontal cross-flow bench is the right choice
Horizontal flow has one defining strength: the first air off the filter, the cleanest, never-yet-touched air, reaches the work before it has passed over anything else. It's the natural pick when the work looks like this.
The workflow is long and linear
You can arrange a clean-to-dirty sequence from the filter outward, which is exactly what the zoning map below sets out.
You pour or handle media plates
Horizontal air passes cleanly over open plates and Petri dishes without driving air down into them.
You do electronics, optics or precision assembly
Particle-sensitive parts stay in the first, cleanest air, with generous unobstructed height for tooling.
You want a low, deep working envelope
A cross-flow bench is typically lower and deeper than a vertical cabinet of equivalent class, which suits seated bench work.
Tall items would disturb downward flow
Under downflow a tall fixture shadows everything beneath it. With sideways air the wake falls only directly behind the item, so the rest of the bench keeps its clean stream.
None of the above?
If the process is hazardous, generates airborne material or needs the operator protected, horizontal is the wrong configuration. The next section sets out the four cases that rule it out.
When a horizontal bench is the wrong choice
This matters more than any spec. A horizontal LAF blows the work-zone air toward the operator's face: the air that has passed over your work reaches the person last, at face height, and it leaves through the open front rather than up a duct. Four situations rule it out outright.
- Protecting the operatorA horizontal LAF protects the product, not the person. For operator or room protection use a biosafety cabinet for biological agents, or a fume hood for chemical vapours, and not any LAF bench.
- Powders, allergens or sensitisersHorizontal flow carries that material straight at the operator. It belongs in containment, or in a vertical unit where the work is purely product-protection with a downward sweep preferred.
- Volatile solvents or fumesA LAF recirculates room air through a HEPA filter, and HEPA captures particulates only, never vapour, so it neither captures nor exhausts fumes. Volatile work needs a fume hood.
- Tall apparatusWhere a downward sweep is preferred so that contamination is not pushed forward across the bench, vertical is usually the better answer.
In short: horizontal is for clean product in a linear, non-hazardous workflow. For operator safety or downward-sweep processes, the vertical configuration is the one to read next.
This page
Horizontal, cross-flow
HEPA in the back wall, air travels back to front
The alternative
Vertical, downflow
HEPA overhead, air travels top to bottom
- What it protects
- The product. The air reaches the operator last, so the person is never protected.
- The product, and the operator sits outside the direct discharge path.
- Work it suits
- Advantage. Long, linear clean-to-dirty bench work: media plates, electronics and optics assembly.
- Advantage. Sterile dispensing, powder handling and taller setups.
- Where the wake falls
- Advantage. Directly behind the item, so the rest of the bench keeps its clean stream.
- Directly beneath the item, so everything under a tall fixture is shadowed.
- Bench envelope
- Advantage. Lower and deeper, which suits seated bench work.
- Advantage. Taller headroom above the work surface.
- How it is zoned
- Back to front, outward from the filter face. The map below.
- Top down, from the filter face onto the work.
- Hazardous material
- Never. Use a biosafety cabinet or a fume hood.
- Never. Use a biosafety cabinet or a fume hood.
FIG. 02A short contrast, argued from the horizontal side. The full side-by-side comparison lives on the laminar air flow overview.
Vertical laminar air flow /Laminar air flow overview /Where LAF units are used
How to zone a horizontal bench, the first-air map
The cleanest air is at the filter face and degrades as it crosses the bench, so where you place each step decides how clean your critical work really is. Lay a cross-flow bench out back-to-front like this.
- First air, HEPA filtered supply
- Unswept wake behind an obstruction
- Bench, filter and operator
FIG. 03A cross-flow bench with an object standing on the worktop. The sheet leaves the vertical HEPA face as first air, crosses the work zone at a nominal 0.45 m/s, and arrives at the operator last. The object displaces the lanes around it and leaves an unswept pocket behind it, where a settle plate is exposed while the rest of the bench holds ISO Class 5.
| Bench position, back to front | Air cleanliness here | Put here | Keep out |
|---|---|---|---|
| Against the filterthe back | First air, cleanest | The critical, sterile or open step: open plates, sterile fill, the sensitive part | Your hands resting in front of it |
| Mid-benchonce-passed | Clean, once-passed | Tools, tips, the active working area | Clutter, large boxes that block the stream |
| Toward the front edgeabout to exit | Most-used air, about to exit | Waste, used tips, less-critical items | Nothing critical or open |
| The front openingexit | Exit | Nothing | Tall equipment, monitors or arms parked across the opening |
FIG. 04Applies to horizontal cross-flow benches. Vertical units zone top-down instead.
Never put a dirty or waste item upstream, meaning behind, a clean one.
Keep large objects and your own arms out of the direct filter-to-work path, because an obstruction creates turbulence and a dead zone downstream where particles settle.
Work in line with the flow, not across it.
A buyer can lift this straight into an SOP. This zoning is a property of horizontal flow itself. Vertical units zone differently, top-down, which is one more reason the two aren't interchangeable.
Zoned the other way
A downflow cabinet runs the same argument from the ceiling, so the wake falls underneath the item instead of behind it and the map above changes with it.
What's different inside a horizontal unit
The generic anatomy is the same as any LAF unit and is covered on the main laminar air flow page: pre-filter, blower or FFU, plenum, work surface in SS 304 or SS 316, manometer. Three things the horizontal configuration changes.
Mounted in the back wall
Its full vertical face is what produces the uniform horizontal sheet, so velocity is gridded across that vertical face at validation.
They matter more here
An open cross-flow bench is exposed to room cross-draughts from the front, so a hooded version or careful siting is what keeps the stream laminar.
Tuned to spread air evenly
Tuned across the vertical face, because an uneven face is the horizontal failure mode: a decaying sheet from filter to front.
How to size and select a horizontal unit
Five questions settle the specification, and they are the same five our engineers ask on a first call.
Where the answers get tested
Every one of these five ends up as a number on a validation report. Settle them before the bench is built rather than on test day, because the particle count, the filter integrity test and the velocity map all measure the answers given here.
- 01
What cleanliness?
Sterile or sterility-sensitive work targets ISO Class 5 and EU-GMP Grade A, which fixes both the HEPA grade and the velocity.
- 02
Which HEPA grade?
H13 covers most ISO Class 5 work. H14 buys margin for especially particle-critical processes, and Fabtech supplies both.
- 03
How deep, how wide?
Width is set by operators and apparatus. Horizontal rewards depth, so allow room for the clean-to-dirty layout above.
- 04
What's the room like?
Open cross-flow benches are sensitive to cross-draughts and door swings. A hooded version, or siting away from traffic, keeps the stream laminar.
- 05
One bench, or a whole area?
For a single station a cross-flow bench is ideal. To make a whole area unidirectional, HEPA is engineered into the ceiling instead.
Standards and validation, horizontal-specific
A cross-flow bench earns its ISO Class 5 rating on test day, not on the spec sheet.
- ISO 14644-1The particle-count class of the work zone, ISO Class 5, with EU-GMP Annex 1 Grade A as the sterile-work equivalent.
- EN 1822The HEPA filter classification, H13 at 99.95 percent and H14 at 99.995 percent efficiency at the most-penetrating particle size.
- HEPA integrityA PAO or DOP aerosol challenge scanned across the installed filter face proves the pack and its seal have no leaks.
- Velocity and uniformityThe horizontal-specific check. The velocity grid is mapped across the vertical filter face and the stream is confirmed parallel and within tolerance, typically 0.45 m/s within 0.05 m/s, from filter to front. An uneven or decaying sheet is the failure mode unique to cross-flow. Repeated periodically and after every filter change.
- DQ / IQ / OQ / PQWithin a regulated facility this sits inside formal qualification. Where Fabtech supplies the equipment, that qualification falls under an equipment AMC or FAT scope, offered on equipment only.
The broader grade map, Schedule M, WHO-GMP and the legacy Class 100, lives on the laminar air flow overview and in our ISO classification of cleanrooms reference.
- Filter face, flow toward the reader
- Gel seal and frame
FIG. 05The check that is specific to this configuration. On a downflow unit the velocity grid is read across a horizontal filter face; on a cross-flow bench the same grid is mapped across the vertical face, then the stream is confirmed parallel from filter to front.
How Fabtech approaches horizontal, cross-flow airflow
We build these benches ourselves and size them to the room they'll actually live in: the bench, its HEPA grade and where it sits are specified together, so the clean-to-dirty layout holds under real room conditions and not just on a test sheet.
Fabtech Cleanrooms manufactures horizontal cross-flow LAF benches in-house, supplied both as standalone units and integrated within turnkey cleanroom projects. We have delivered the same HEPA-filtered, unidirectional-airflow work for electronics, precision and research clients across India, Bosch Nashik and BARC among them. A cross-flow bench depends on exactly that discipline.
Ask us and we'll walk you through a named horizontal-bench reference close to your own process.
- Bosch NashikElectronics and precision manufacturing
- BARC HospitalResearch and clinical, particle-count classified
- Ajanta Pharma, AurangabadCleanroom envelope and HVAC, one scope
Horizontal laminar air flow, answered
It's a workbench or cabinet with a HEPA filter in the back wall that pushes filtered air horizontally across the work surface toward the operator in a smooth, unidirectional sheet, a cross-flow bench, creating an ISO Class 5 clean zone that sweeps airborne particles off the bench.
When you need product protection rather than operator protection for a linear, clean-to-dirty workflow, such as media plate work, sterile handling of clean materials, or electronics and optics assembly, and the process is not hazardous.
Work back-to-front. Put the critical, open or sterile step against the filter, in the first and cleanest air. Tools and the active step go mid-bench, waste toward the front edge. Never put a dirty item upstream of a clean one. Keep arms and large objects out of the filter-to-work path.
No. A horizontal LAF blows work-zone air toward the operator, so it must not be used for powders, sensitisers, volatile solvents or biological hazards. Use a biosafety cabinet for biological agents or a fume hood for chemical vapours; a horizontal LAF protects the product, not the operator.
HEPA H13 or H14, and Fabtech supplies both, delivering a uniform horizontal stream across the work opening at a nominal design set-point of 0.45 m/s, about 90 ft/min.
The work zone is proven rather than assumed: a PAO or DOP integrity test on the HEPA, particle counts to ISO 14644-1, and a velocity grid mapped across the vertical filter face from filter to front, which is the horizontal-specific check, repeated periodically and after each filter change.
Horizontal suits long, linear clean-to-dirty bench work. Vertical suits sterile dispensing, powder handling and taller setups. The full side-by-side sits on the main laminar air flow page, and the downflow case is set out on the vertical laminar air flow page.
